1. Width: 3050mm.
2. Pleat height: 14-50 mm adjusted by touchscreen
3. Maximum folding speed: 10-110 pleats/minute and adjustable
4. Voltage: AC 380V (3 phases)
5. Heating power: 0.95kW*24+9.5kW
6. Recommended temperature control range: ambient-180℃
7. Air working pressure: 0.6mpa
8. Knife height, knife gap, knife angle are all adjusted by touchscreen
9. Heating plate height is adjusted by touchscreen
10. Independent temperature control for the upper and the lower
11. Upper knife controlled with 2 servo motors
12. Lower knife controlled with 2 servo motors
13. Servo motor quantity: 2.3kW*4pcs and 0.75kW +0.4kW
14. Machine weight: 3000kg roughly
15. Machine size: L4420*W1800*H2000mm
16. Final pleat shape: M type, N type, W type, etc.

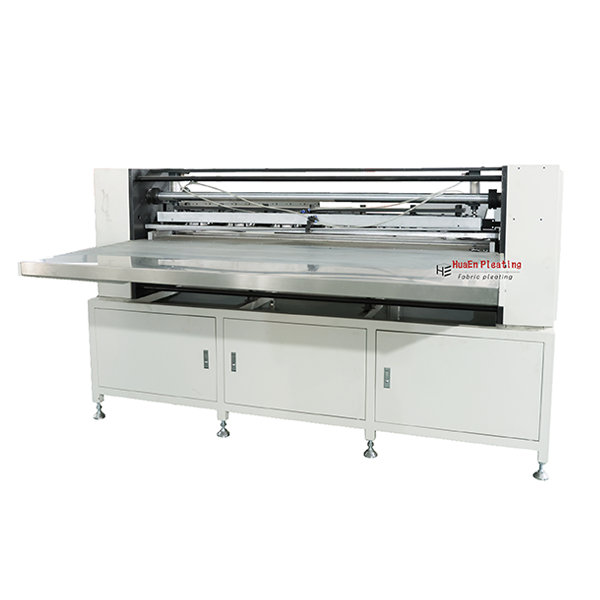

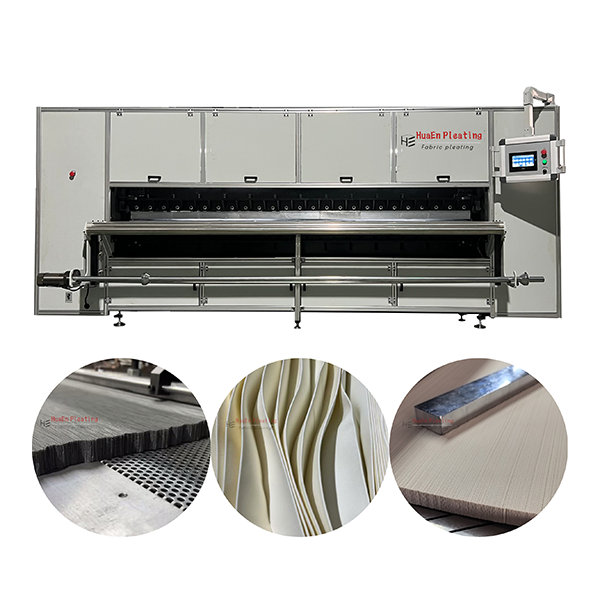

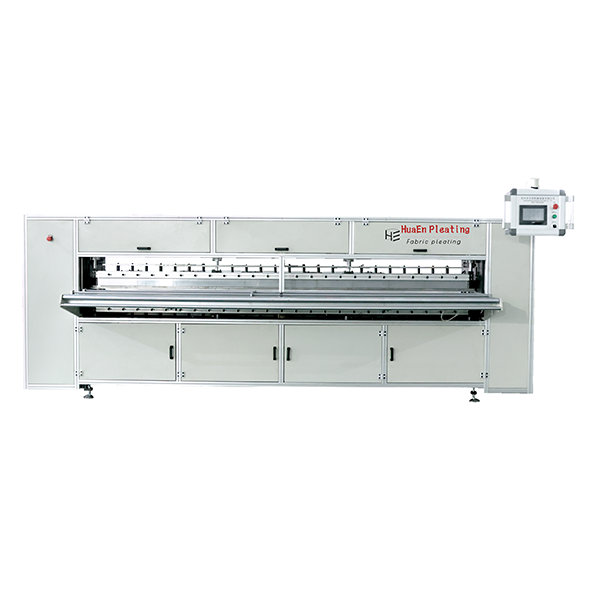

The double knife/blade flymesh pleating machine is an automated knife folding equipment designed for mesh materials such as door and window mesh, industrial filter screens, etc. It adopts a double-knife synchronous pleating system and high-precision servo mechanisms to quickly complete the uniform pleats, meeting the needs of large-scale production.

It can reach 20-30 meters/minute (depending on the thickness of the material) and is compatible with various materials such as polyester, glass fiber, stainless steel mesh (recommended weight 80-300g/㎡)

The blade can be integral or segmented, and the length is customized up to maximum 3.7 meters. The preheating and back pressure devices are optional according to customer needs.
