Detail

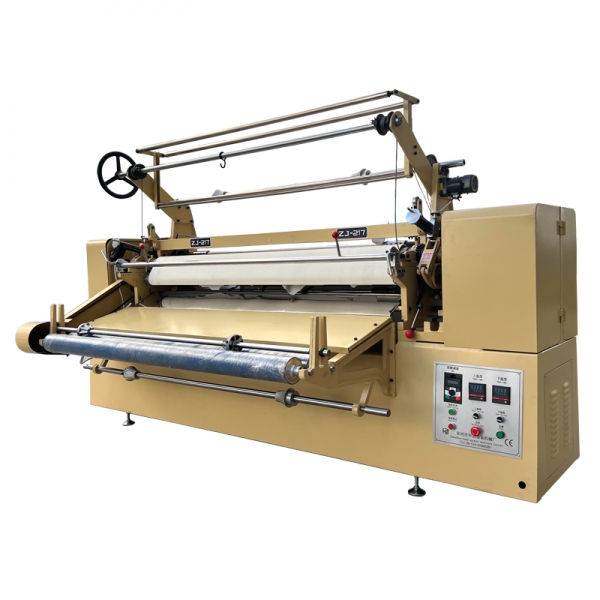

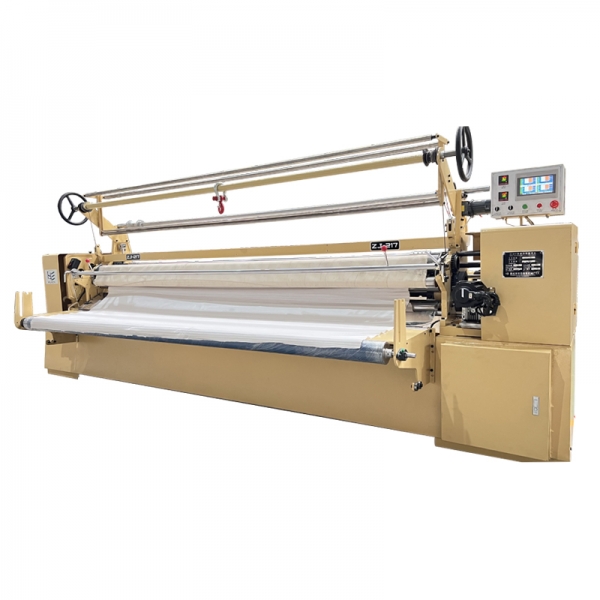

Computerized ZJ-217 (Type D): Non-Computerized: Computerized ZJ-217C (Type C):
Max. pleating width: 1700mm Max. pleating width: 1700mm Max. pleating width: 1700mm
Max. pleating speed: 20-150pleat/minute by VFD Max. pleating speed: 20-150pleat/minute by VFD Max. pleating speed: 20-150pleat/minute by VFD
Pleat width: Min.1mm Pleat width F: 1mm-60mm; width R: 1-50mm Pleat width: Min.1mm
Pleat depth F: 2mm-30mm; depth R: 2mm-10mm Pleat depth F: 2mm-30mm; depth R: 2mm-10mm Pleat depth F: 2mm-30mm; depth R: 2mm-10mm
Air compress: not included but needed Air compress: not needed Pleat width & TD movement adjustment: by computer
Motor power: 1.1kW Motor power: 1.1kW Air compress: not included but needed
Heating power: 1.1kW*9 Heating power: 1.1kW*9 Motor power: 1.1kW
Size: 3200*1650*1750mm Size: 3200*1650*1750mm Servo motor #1: 1kw for TD movement
Packing size: 3300*1150*2000mm (Adjustable) Packing size: 3300*1150*2000mm (Adjustable) Servo motor #2: 1kw for roller rotation span
Net weight: 1300kgs Net weight: 1300kgs Heating power: 1.1kW*9
Gross weight: 1650kgs Gross weight: 1650kgs Cylinder qty.: 2 (for F/R side pleats & Space)
Size: 3200*1650*1750mm
Packing size: 3300*1150*2000mm (Adjustable)
Net weight: 1300kgs
Gross weight: 1650kgs
